FW1/5-4/5M method for determination of the Grain Size Distribution from powder diffraction line profile

Roman Pielaszek

Polish Academy of Sciences, High Pressure Research Center (UNIPRESS), Sokolowska 29/37, Warszawa 01-142, Poland

Abstract

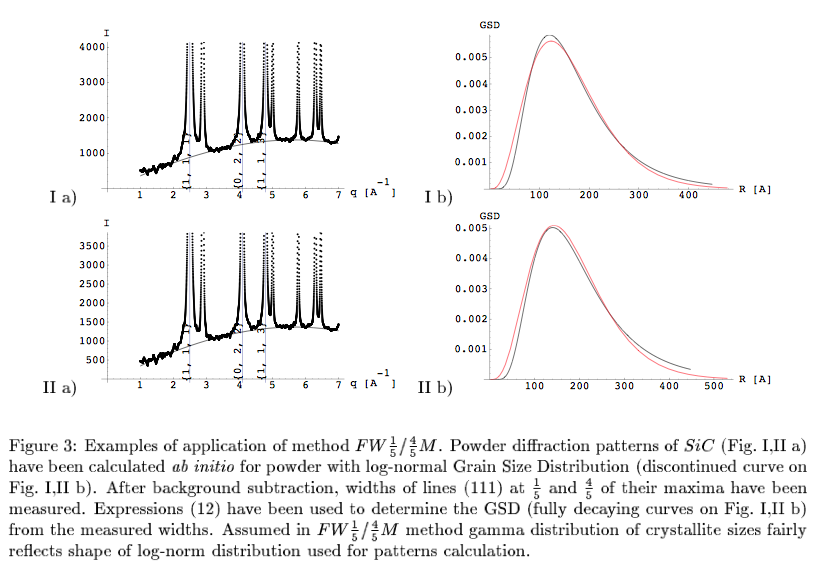

Well established Scherrer method allows for determination of the average grain size  <R> of a crystalline powder by measurement of Full Width at Half Maximum ( FWHM ) of the diffraction peak profile. We propose an enhancement of this classical method. Measurement of two widths of the same peak, allows for two parameters to be distinguished: the average grain size <R> and dispersion of sizes σ. These parameters are sufficient to draw Grain Size Distribution (GSD) curve, that is much more informative than a single size parameter <R>.

We propose to measure widths at 1/5 and 4/5 of the peak maximum ( FW1/5M and FW4/5M , respectively). A simple algebraic formula that converts measured FW1/5M and FW4/5M values into <R> and σ is presented. The FW1/5-4/5M method proposed in this paper is especially sensitive in case of a broad diffraction maxima, i.e. for nano-sized polycrystals.

Journal of alloys and compounds, 392, pp. 128-132



Auxiliary resources (full texts, presentations, posters, etc.)
  1. FULLTEXT: FW1/5-4/5M method for determination of the Grain Size Distribution from powder diffraction line profile, PDF document, version 1.3, 0.9MB
  • Legal notice:

    The above materials are subject to Publisher's copyright and the Author(s) intellectual rights. Without limiting Author(s) rights under respective Copyright Transfer Agreement, no part of the above documents may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Pielaszek Research Corporation, the Publisher.
    Express permission from the Author(s) is required to use the above materials for academic purposes, such as lectures or scientific presentations. In such a case, proper references including Author(s) name(s) and URL of this webpage: http://science24.com/paper/1297 must be provided.
